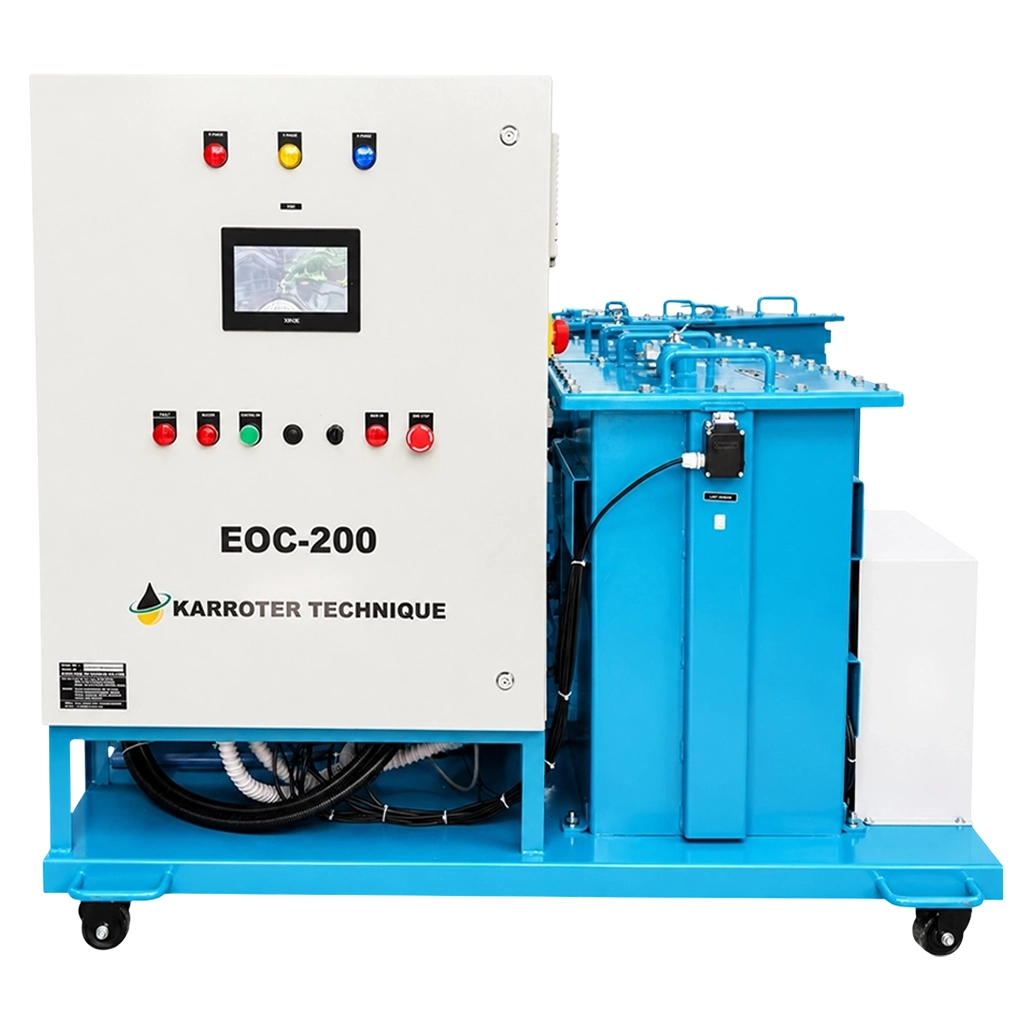

Electrostatic Oil Cleaning Machine 200
EOC-200
The EOC-200 removes particles, sludge, varnish and oxidation products from hydraulic oil and other mineral oils. It helps reduce hydraulic-system malfunctions, extends oil operating life and cleans oil without removing its additives.
Removes particles below 0.05 microns
Stable 12 kV high-voltage power source up to 18 mA load
20 LPM system flow rate with continuous operation
| Specification | EOC-200 |
|---|---|
| Model | EOC-200 |
| System Flow Rate | 20 LPM |
| Dimensions (L × W × H) | 1,200 × 1,200 × 1,100 mm |
| Approximate Weight | 280 kg |
| ISO Viscosity Grade | Recommended Tank Capacity |
|---|---|
| ISO VG 32 | 40,000 litres |
| ISO VG 46 | 30,000 litres |
| ISO VG 68 | 20,000 litres |
| ISO VG 100 | 15,000 litres |
Selection capacities shown are the guidelines specified in the EOC product brochure.
Oil is pumped through a 10,000 V electric field between electrodes in the cleaning cell. The field attracts suspended contaminants to paper collectors placed over and between the electrodes, while clean oil returns to the tank.
