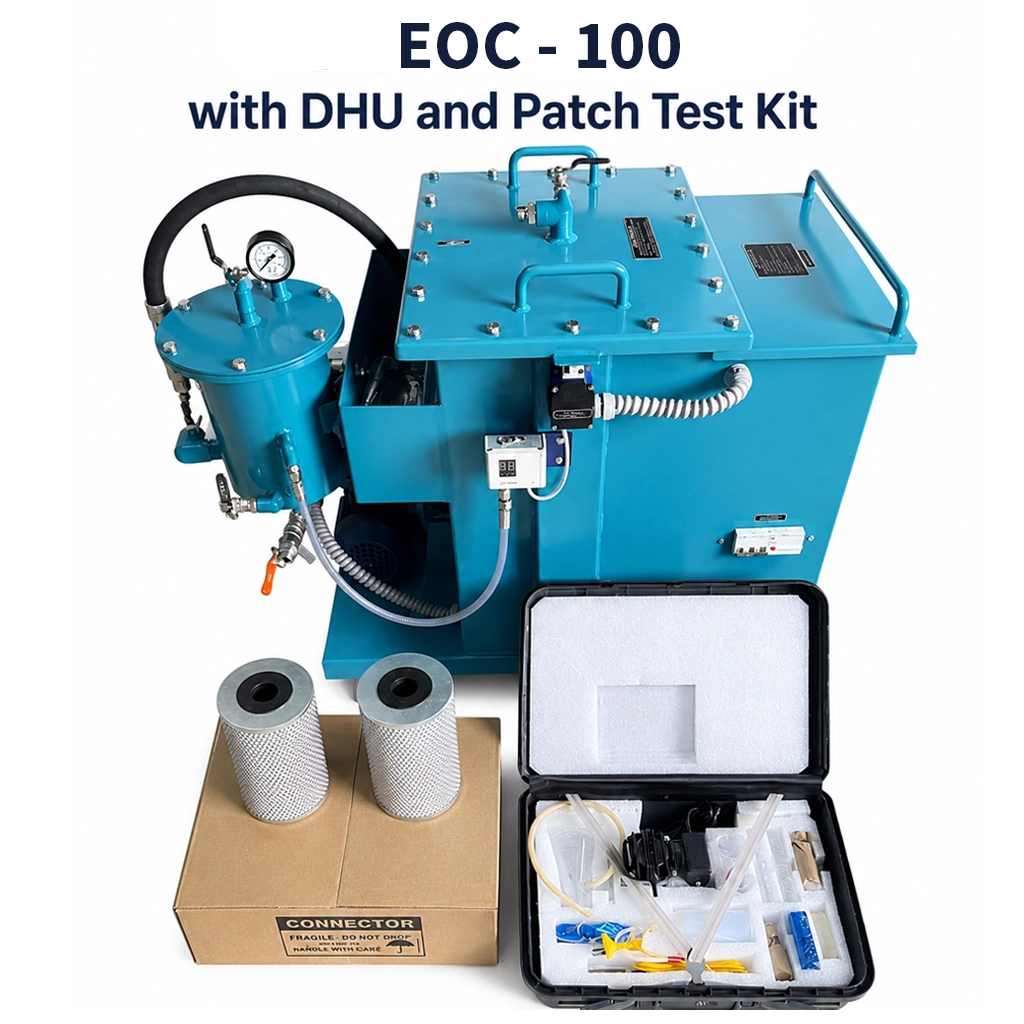

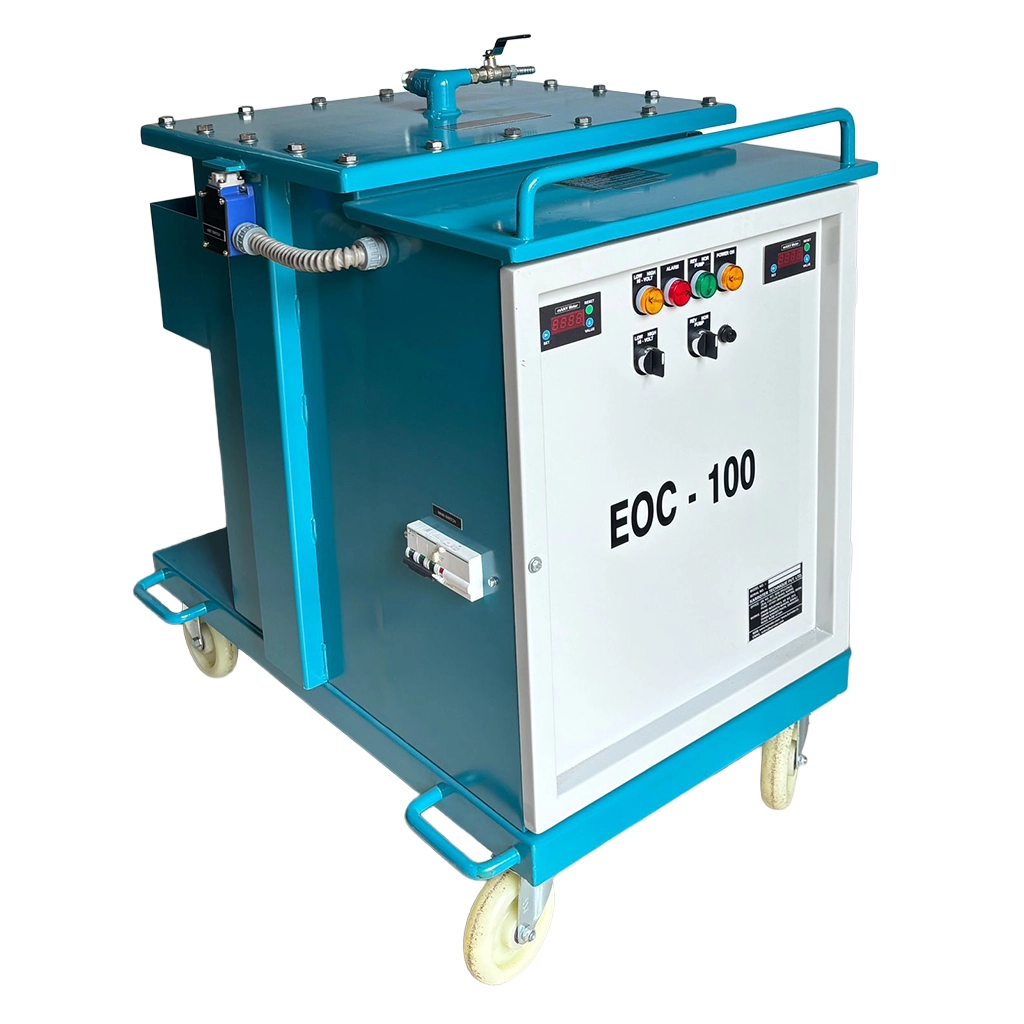

Electrostatic Oil Cleaning Machine 100
EOC-100
The EOC-100 removes particles, sludge, varnish and oxidation products from hydraulic oil and other mineral oils. It helps reduce hydraulic-system malfunctions, extends oil operating life and cleans oil without removing its additives.
Removes particles below 0.05 microns
Stable 12 kV high-voltage power source up to 18 mA load
10 LPM system flow rate with continuous operation
| Specification | EOC-100 |
|---|---|
| Model | EOC-100 |
| System Flow Rate | 10 LPM |
| Oil Inlet and Outlet Ports | ¾-inch BSP hydraulic flexible hoses, R1 type, 5 metre length |
| Pump | Gear pump – 10 LPM |
| Motor | 0.5 HP, 3 phase, 1,440 RPM, 50 Hz |
| ELC Tank | 100 litres, tested for 3 bar operating pressure |
| High Voltage Transformers | 2 Nos. |
| Operating Voltage | 415 VAC, 3 phase, 50 Hz |
| Electric Control Panel | Pump ON/OFF controls, motor protection circuit, ammeter, voltmeter, hour meter and indication lamps |
| Rating | Continuous operation |
| Dimensions (L × W × H) | 950 × 650 × 1,000 mm |
| Approximate Weight | 180 kg |
| ISO Viscosity Grade | Recommended Tank Capacity |
|---|---|
| ISO VG 32 | 30,000 litres |
| ISO VG 46 | 20,000 litres |
| ISO VG 68 | 14,000 litres |
| ISO VG 100 | 7,600 litres |
Selection capacities shown are the guidelines specified in the EOC product brochure.
Oil is pumped through a 10,000 V electric field between electrodes in the cleaning cell. The field attracts suspended contaminants to paper collectors placed over and between the electrodes, while clean oil returns to the tank.
