Mechanical Filtration Systems

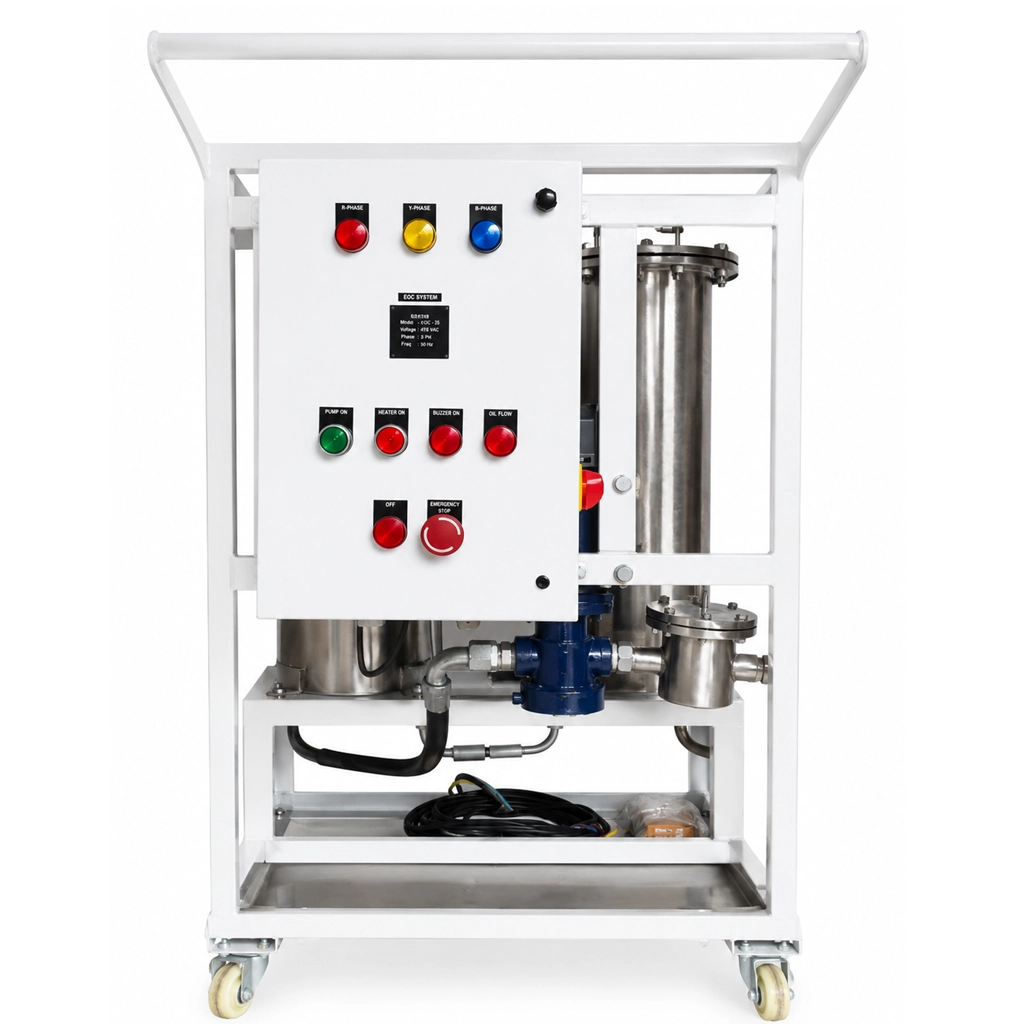

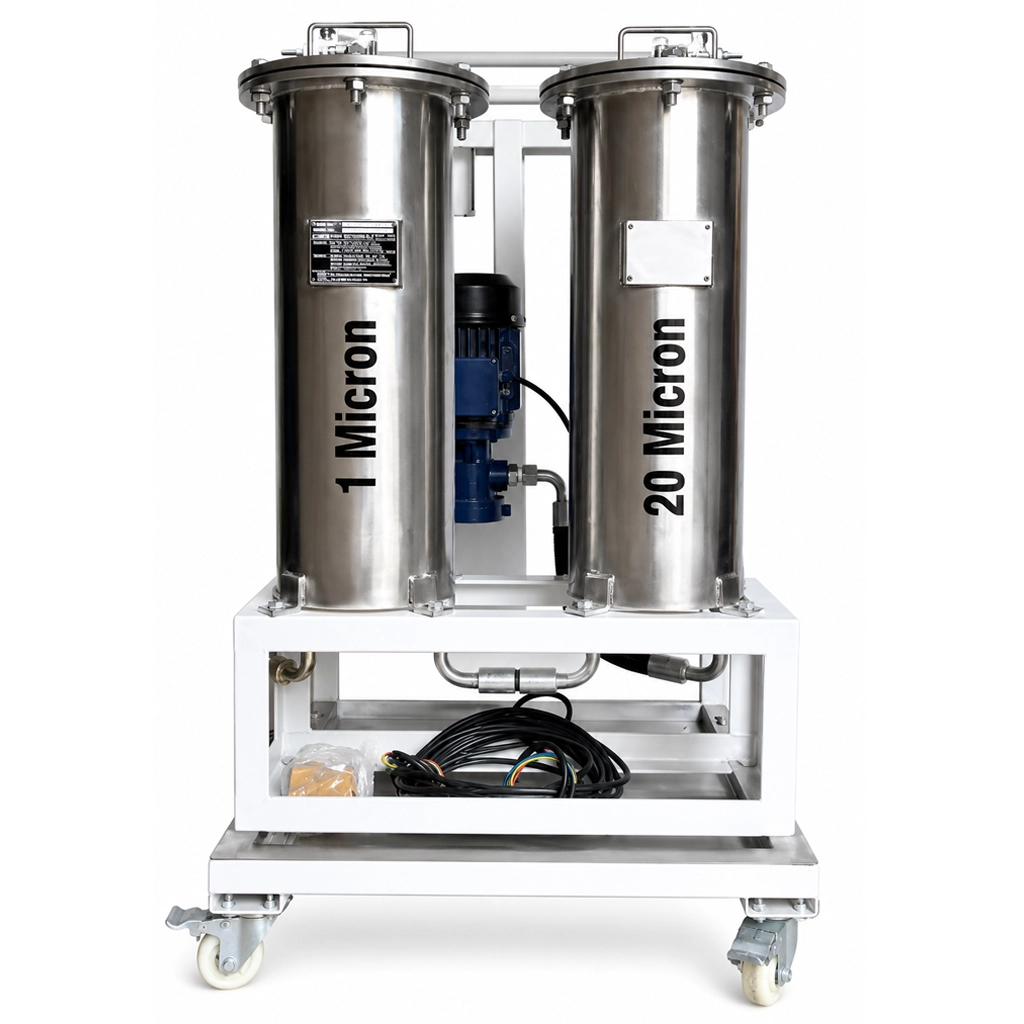

Portable Filtration Skid
A convenient portable system for offline filtration, flushing and fluid transfer. It can be used with in-plant machinery, lubricating-oil systems and hydraulic equipment to achieve and maintain the required ISO cleanliness level.

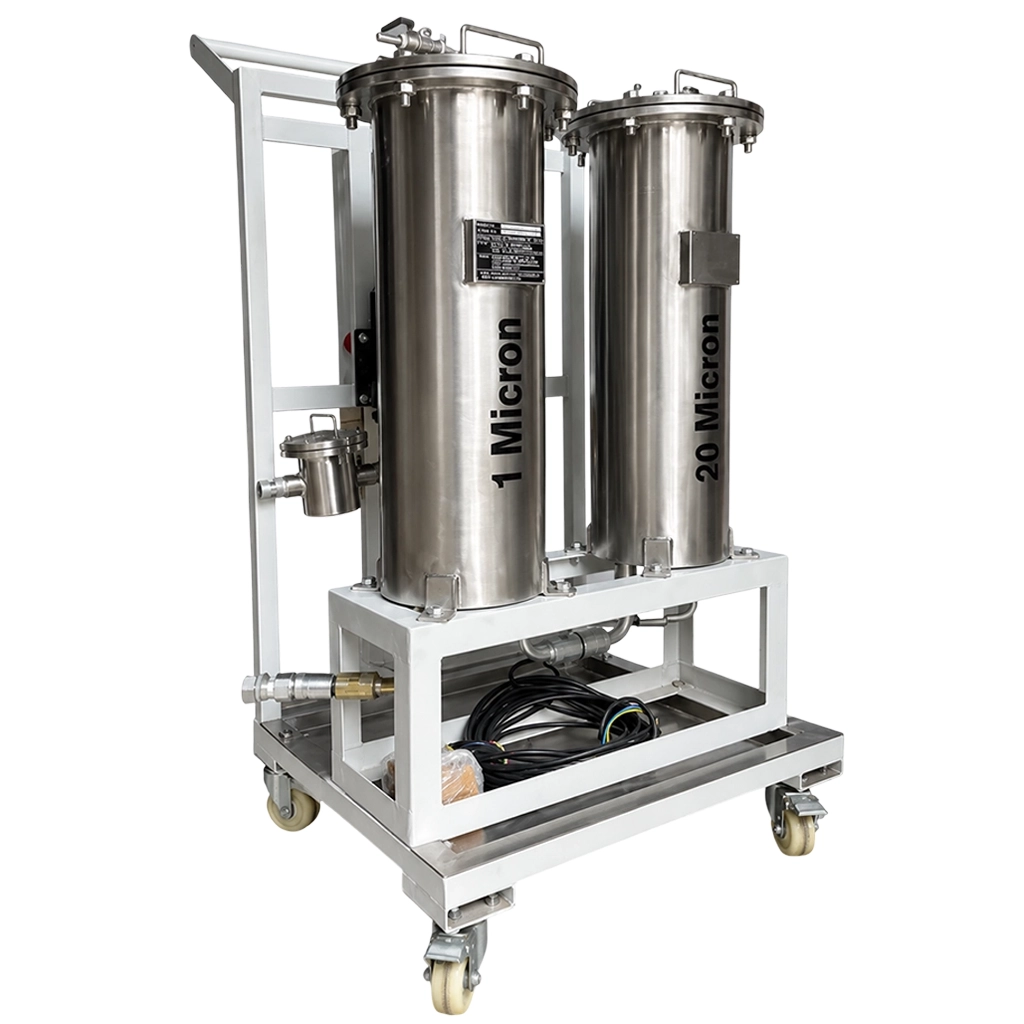

Single or dual filter housing configurations
10 LPM flow rate with multiple-pass operation
Filter media available from 1 micron to above 50 microns
White-paper-impregnated micro glass-fibre depth filter element, available in 10, 5 and 1 micron ratings.
Water-absorbent polymer and micro glass-fibre filter element, 5 micron, with 4.7-litre water-holding capacity.
Brown-paper pre-filter element, available as a single layer in 10, 20 or 30 micron ratings.
Stainless-steel pleated filter media for filtration ratings above 50 microns.
| Specification | Single Filter Housing | Dual Filter Housing |
|---|---|---|
| Operating Power Rating | 110 / 220 / 440 VAC, 50 / 60 Hz, single or 3 phase, 0.5 HP | |
| Flow Rate | 10 LPM | 10 LPM |
| ISO Class | 19 / 17 / 14 | 19 / 17 / 14 |
| Operating Pressure | 0.5 to 3 bar | 0.5 to 3 bar |
| Filter Collapse Pressure | 4 bar | 4 bar |
| Water-Holding Capacity | 4.7 litres, only with the 15 B filter element | |
| Pressurised Delivery | Yes – up to 3 metres | Yes – up to 3 metres |
| Oil Sample Valve | Yes | Yes |
| Overall Dimensions (L × W × H) | 350 × 600 × 1,000 mm | 600 × 600 × 1,000 mm |
| Weight | 80 kg | 120 kg |
| Operation Process | Multiple pass | Multiple pass |
Trial parameters: Hydraulic Oil 46 cSt; oil volume 70 litres; contamination added manually; ambient oil temperature; 5 LPM flow rate; Dual-15 CA oil-filter model.
