KT 200

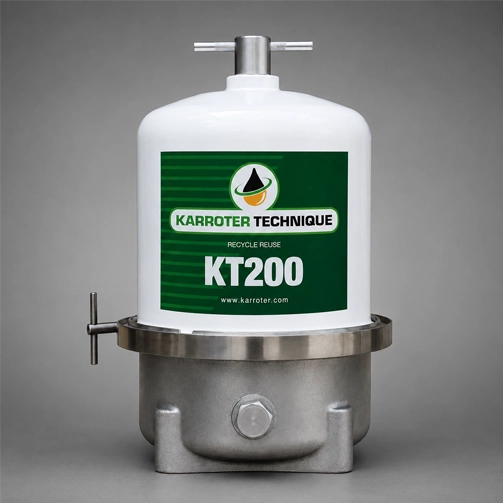

KT200 Centrifuge
Engineering Clean Oil Solutions
Compact centrifugal oil filter designed to remove contaminants, extend oil life & improve equipment performance for oil capacities from 50 to 400 litres.
-
Suitable for 50–400 Litre Oil Capacity
-
High Filtration Efficiency
-
Longer Oil Life
-
Reduced Machine Wear
-
Low Maintenance
-
Reliable Performance
Product Specifications
KT 200 Centrifuge
- Suitable for oil volumes between 50 to 400 litres
- Dirt holding capacity of the rotor: 2 litres
- Oil capacity of the rotor: 2.3 litres
- Internal diameter of the oil feed pipe: minimum 12 mm
- Internal diameter of the oil return pipe: minimum 50 mm
- This model is available with a cleanable rotor
- The inlet thread and shut-off valve can be matched to customer specifications
- A mounting plate is available for external fitting away from the engine with compressed-air-driven oil return
- A release tool for removing the rotor
- Approximate empty weight: 9.5 kg
Performance Data
Characteristics
Typical rotor output for SAE 30 oil at 100 °C
