KT 600

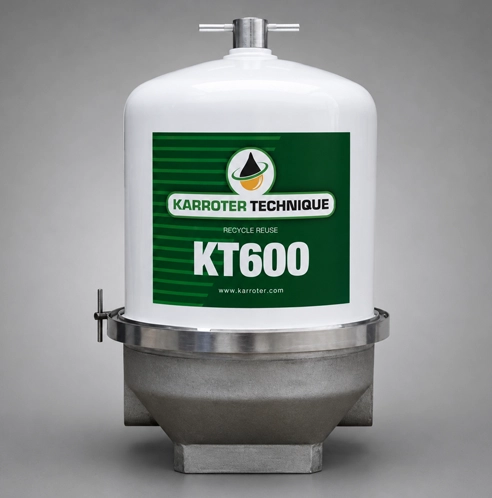

KT 600 Centrifuge
Industrial-Scale Oil Filtration
A heavy-duty centrifugal oil filter engineered for oil volumes from 1,000 to 3,500 litres, with a high-capacity cleanable rotor and adaptable installation options.
1,000–3,500 litre operating capacity
Six-litre dirt holding capacity
Adaptable inlet and shut-off valve
Product Specifications
KT 600 Centrifuge
- Suitable for oil volumes between 1,000 to 3,500 litres
- Dirt holding capacity of the rotor: 6 litres
- Oil capacity of the rotor: 6.5 litres
- Internal diameter of the oil feed pipe: minimum 19 mm
- Internal diameter of the oil return pipe: minimum 76 mm
- This model is exclusively available with a cleanable rotor
- Oil inlet thread and shut-off valve can be adapted to customer specifications
- A mounting plate is available for external fitting away from the engine
- A release tool is available for removing the rotor
- Approximate empty weight: 25 kg
Performance Data
Characteristics
Typical KT 600 rotor output
