Low Vacuum Dehydration Machine 100
LVDM-100

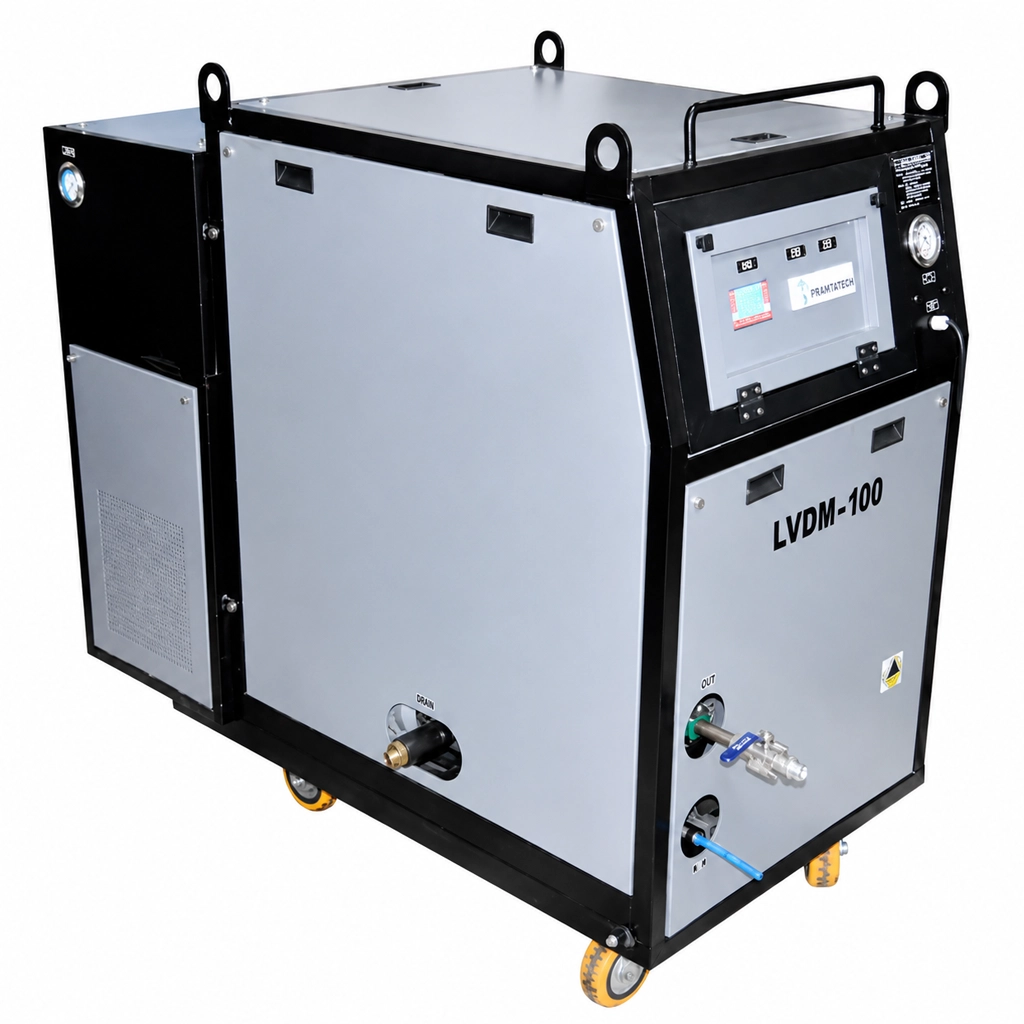

LVDM-100 Low Vacuum Dehydration Machine

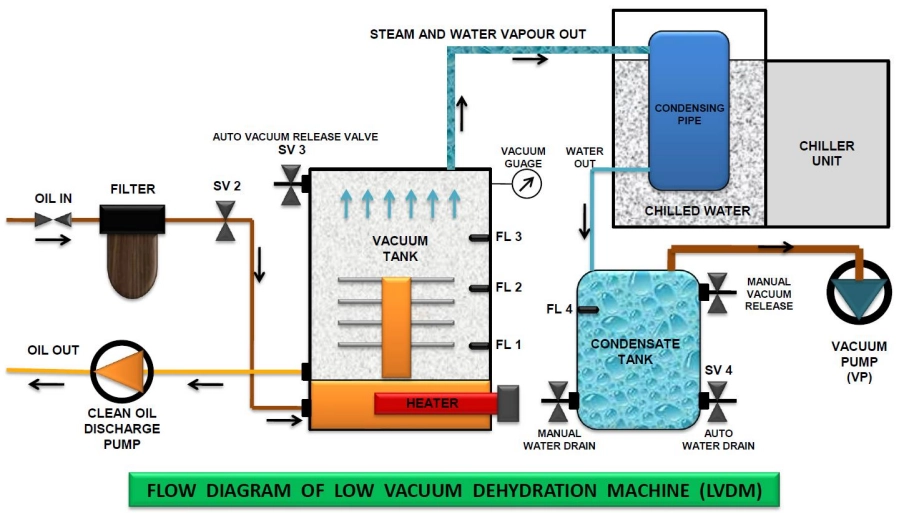

An automatic, portable oil purification system designed to remove dissolved and free water, moisture and entrained gases from industrial oils. Low-temperature vacuum dehydration protects the oil while helping restore it to a serviceable condition.
-
Reduces water and moisture contamination to below 100 ppm
-
Automatic operation with 4.3-inch PLC touch-screen HMI
-
Designed for oil tanks up to 5,000 litres
Technical Specification
| Specification | LVDM-100 |
|---|---|
| Suitable Tank Capacity | 5,000 litres |
| Oil Inlet and Outlet Hoses | 3/4-inch BSP |
| Vacuum Pump with Motor (Belt Driven) | 200 LPM, 0.5 HP |
| Vacuum Chamber | 100 litres |
| Operating Vacuum | 750 mm Hg |
| Discharge Pump with Motor | 50 LPM, 2 HP |
| Low-Watt-Density Heater | 8 kW |
| Chiller Unit | 0.6 TR |
| HMI with Touch-Screen Display | 4.3-inch PLC with 8 I/O |
| Water Discharge | Automatic |
| Approximate Weight | 300 kg |
