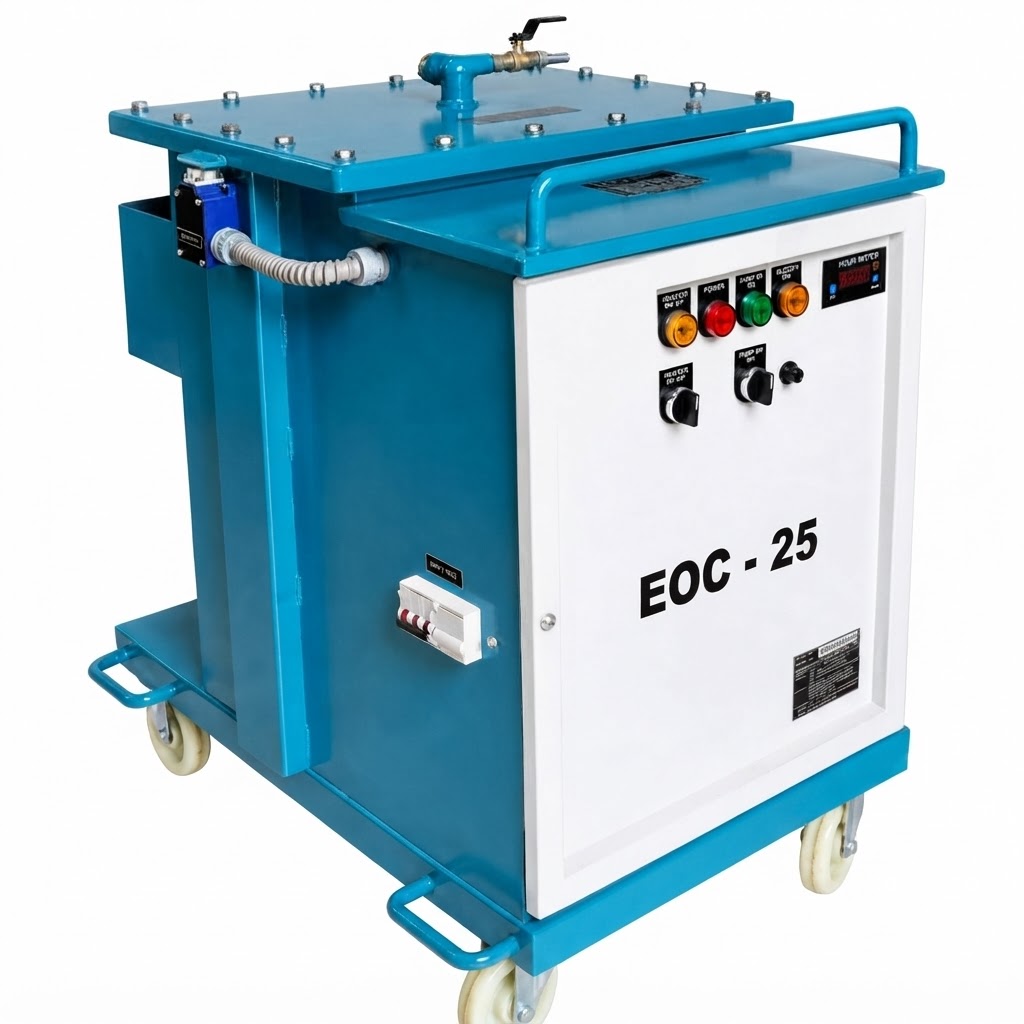

Electrostatic Oil Cleaner
Top 10 Electrostatic Oil Cleaner Manufacturers in India | Karroter Technique
Karroter Technique Pvt Ltd is leading Electrostatic Oil Cleaner Manufacturers, Suppliers, Dealers, Traders and Exporters in India. An electrostatic oil cleaner is an advanced oil purification system designed to remove very fine particles, varnish, sludge, and oxidation by-products from various types of industrial oils. It uses a high-voltage electrostatic field to attract and collect contaminants from the oil.
Electrostatic oil cleaners are commonly used for hydraulic oil, lubricating oil, turbine oil, gear oil, quenching oil, and cutting oil. By removing fine contaminants that conventional filters may not capture easily, these systems can support cleaner oil and reliable equipment operation.
Karroter Technique manufactures and supplies electrostatic oil cleaning machines for different industrial applications. The equipment can be selected according to oil type, flow rate, tank capacity, contamination level, and specific oil-cleaning requirements.
What is an Electrostatic Oil Cleaner?
An electrostatic oil cleaner is an oil-cleaning unit that circulates oil through an electrostatic field to remove contaminants. Instead of depending only on the pore size of a filter element, it charges or polarizes contaminants in the oil and collects them on special collector media.
The system can be used for fine cleaning of hydraulic, lube, turbine, gear, and quenching oils, and it can be used along with a tank mounted centrifugal oil filter that removes heavier particles and sludge. Depending on the design, it can be supplied as a stationary or portable unit.
Working Principle of Electrostatic Oil Cleaner
The working principle is based on the attraction of charged contaminants in an electrostatic field. The complete process can be explained through the following steps:
- Step 1: Contaminated Oil Inlet: Contaminated oil is drawn from the equipment reservoir, storage tank, or oil system into the electrostatic oil cleaner through the inlet connection.
- Step 2: Pre-Filtration: Coarse particles can be removed first using a mechanical filtration system, so the electrostatic stage can focus on fine contaminants.
- Step 3: Entry into the Electrostatic Chamber: The oil flows into a chamber where a high-voltage electrostatic field is generated across the collector media.
- Step 4: Charging of Contaminants: Fine particles, varnish, sludge, and oxidation by-products in the oil are charged or polarized by the electric field.
- Step 5: Collection on Collector Media: The charged contaminants are attracted to the collector media and held there, which separates them from the oil.
- Step 6: Clean Oil Discharge: The cleaned oil leaves the chamber and returns to the connected oil tank or lubrication system.
- Step 7: Continuous Circulation: The oil can be circulated continuously until the required cleanliness level is achieved according to the application requirements.
- Step 8: Media Replacement and Maintenance: The collector media is replaced periodically after it has collected contaminants, to maintain effective cleaning performance.
Types of Electrostatic Oil Cleaner
As one of the leading Electrostatic Oil Cleaner Manufacturers in India, we offer a wide range of products designed to meet diverse applications, industry requirements, and quality standards.
- Electrostatic Oil Cleaner: Designed to remove fine particles, varnish, and sludge from industrial oils using an electrostatic field. It helps maintain cleaner oil in different systems.
- Electrostatic Oil Cleaning Machine: A complete industrial machine with pump, electrostatic chamber, and controls for continuous oil cleaning. It is available in different sizes according to oil volume.
- Electrostatic Oil Cleaner for Hydraulic Oil: Designed for hydraulic oil cleaning where fine contaminants can affect valves, pumps, and other precision components.
- Electrostatic Oil Cleaner for Lube Oil: Used to clean lubricating oil in industrial machinery, helping maintain suitable oil condition for lubrication.
- Electrostatic Oil Cleaner for Turbine Oil: Suitable for turbine lubrication systems where varnish and fine particles need to be controlled for smooth operation.
- Electrostatic Oil Cleaner for Gear Oil: Used for cleaning gear oil in industrial gearboxes by removing fine wear particles and sludge.
- Electrostatic Oil Cleaner for Quenching Oil: Designed for quenching oil in heat treatment, where carbon, sludge, and fine particles collect during operation.
- Electrostatic Oil Cleaner for Cutting Oil: Used to clean neat cutting oil in machining operations by removing fine metal particles and sludge.
- Portable Electrostatic Oil Cleaner: A mobile cleaning solution that can be moved between machines, tanks, or equipment. It is useful for maintenance and oil purification requirements.
- Electrostatic Varnish Removal Unit: Configured to help remove soft contaminants and varnish-forming by-products from oils in critical lubrication and hydraulic systems.
Technical Specifications of Electrostatic Oil Cleaner
As a trusted Electrostatic Oil Cleaner Suppliers in India, we provide reliable products and solutions to businesses across various industries, supporting their oil cleaning and equipment maintenance requirements.
| Parameter | Specification | Unit | Standard/Range | Description |
|---|---|---|---|---|
| Cleaning Type | Electrostatic Separation | N/A | Application dependent | Collects contaminants using an electrostatic field |
| Model Series | EOC-25, EOC-50, EOC-100, EOC-200 | N/A | As per model | Models available for different oil volumes |
| Oil Type | Hydraulic, Lube, Turbine, Gear, Quenching | N/A | Application dependent | Suitable oil type depends on system design |
| Flow Rate | Model dependent | LPH | As per model | Determines oil processing capacity |
| Particle Removal Capability | Model dependent | µm | Application dependent | Indicates the fineness of contaminants collected |
| Electrostatic Field Voltage | Model dependent | kV | As per design | Generates the field used to collect contaminants |
| Operating Pressure | Application dependent | bar | As per model | Required pressure for oil circulation |
| Operating Temperature | Application dependent | °C | As per oil specification | Suitable operating temperature |
| Collector Media | Replaceable Elements | N/A | As per design | Holds the contaminants collected from the oil |
| Motor Power | Model dependent | kW | As per model | Power requirement for pump operation |
| Connection Size | Model dependent | mm | As per design | Oil inlet and outlet connection size |
| Construction Material | Industrial Grade | N/A | As specified | Provides suitable durability for industrial use |
Features & Benefits of Electrostatic Oil Cleaner
As an experienced Electrostatic Oil Cleaner Dealers in India, we deliver high-quality products featuring consistent performance, smooth finishing, excellent durability, and long service life.
| Feature | Benefit | Advantage |
|---|---|---|
| Electrostatic Separation | Collects very fine contaminants from oil | Helps maintain cleaner oil |
| Fine Particle Removal | Captures particles that conventional filters may miss | Supports protection of precision components |
| Varnish and Sludge Control | Helps remove oxidation by-products | Supports reliable valve and pump operation |
| Continuous Filtration | Supports ongoing oil cleaning | Helps maintain oil quality |
| Extended Oil Life | Reduces contaminants that accelerate oil degradation | Helps reduce oil consumption and cost |
| Compact Design | Requires manageable installation space | Easier equipment integration |
| Multiple Oil Applications | Can be used with different oil types | Provides operational flexibility |
| Easy Maintenance | Collector media can be replaced when required | Reduces maintenance effort |
| Robust Construction | Suitable for industrial environments | Supports dependable operation |
| Customizable Design | Can be adapted to application requirements | Provides application-specific solutions |
Applications of Electrostatic Oil Cleaner
As reputed Electrostatic Oil Cleaner Manufacturers in India, our products are widely used across multiple industrial sectors for diverse applications, offering reliable performance and practical solutions.
- Hydraulic Systems: An electrostatic oil cleaner can remove fine contaminants and varnish from hydraulic oil. This supports cleaner fluid circulation through pumps, valves, and servo components.
- Turbine Lube Oil Systems: Turbine oil can develop varnish and fine particles during service. Electrostatic cleaning helps control these contaminants, and where moisture is also a concern, a low vacuum dehydration machine can be used along with it.
- Industrial Machinery: Industrial machinery can use electrostatic oil cleaning to maintain cleaner lubrication oil. This can help reduce contamination-related wear and support equipment performance.
- Gearbox Systems: Gearboxes can use electrostatic cleaning to remove fine wear particles and sludge from gear oil. Cleaner oil supports proper lubrication of gears and bearings.
- Heat Treatment and Quenching: Quenching oil collects carbon and sludge with continuous use. Electrostatic cleaning helps keep the oil in better condition for consistent quenching operations.
- Machining and Cutting Oil: Neat cutting oil used in machining picks up fine metal particles. An electrostatic oil cleaner can remove these particles and help extend the oil life.
- Power Generation Equipment: Power-generation machinery can use electrostatic oil cleaners to control varnish and oil contamination. Cleaner oil can support the lubrication requirements of critical components.
- Steel and Cement Plants: Heavy plant equipment operates in dusty and demanding conditions. Electrostatic cleaning helps maintain oil cleanliness in hydraulic and lubrication systems.
- Oil Storage Tanks: Electrostatic oil cleaning machines can be used to clean oil stored within tanks. The oil can be circulated through the unit and returned after treatment.
- Heavy-Duty Equipment: Construction and mobile equipment can use portable electrostatic cleaning, and a portable centrifugal oil filtration system can be added for removing heavier contaminants.
Why Choose Us
- Quality Oil Cleaning Solutions: Karroter Technique provides electrostatic oil cleaning machines designed for industrial applications. Products can be selected according to specific oil-cleaning requirements.
- Application-Based Solutions: Systems can be configured according to oil type, flow requirements, tank arrangement, and equipment application, and can be combined with an oil purification system for complete oil maintenance.
- Technical Expertise: Our technical understanding helps customers select suitable solutions for hydraulic oil, lubricating oil, turbine oil, gear oil, quenching oil, and cutting oil applications.
- Durable Construction: The equipment is designed using suitable industrial-grade materials to support reliable operation in different industrial environments.
- Customer Support: Please contact us for assistance with product selection, technical requirements, installation guidance, and oil cleaning system support according to your needs.
Karroter Technique Pvt Ltd is leading Electrostatic Oil Cleaner Manufacturers, Suppliers, Dealers, Traders and Exporters in India. An electrostatic oil cleaner provides an effective solution for removing fine particles, varnish, and sludge from hydraulic, lubricating, turbine, gear, quenching, and cutting oils. Its electrostatic separation principle, continuous circulation, and flexible application make it suitable for different industrial oil-cleaning requirements. Selecting the right cleaning system and manufacturer helps ensure compatibility with the oil type, equipment, flow rate, tank capacity, and operating conditions.
FAQs
An electrostatic oil cleaner is an oil purification system that uses a high-voltage electrostatic field to attract and collect fine particles, varnish and sludge from industrial oils.
Oil is circulated through an electrostatic chamber where contaminants are charged or polarized and attracted to collector media. The cleaner oil then returns to the tank or the oil system.
It can remove very fine solid particles, oxidation by-products, varnish, sludge and carbon deposits. The actual performance depends on the machine design, oil type and contamination level.
An electrostatic oil cleaner is mainly designed for solid and insoluble contaminants. Where water or moisture is the main problem, a dehydration system is generally used along with it.
Important factors include oil type, oil viscosity, tank capacity, flow rate, operating temperature, contamination level, connection size and equipment requirements. The correct specifications help achieve effective oil cleaning.
